|Product Name:||Fiber Laser Cutting Machine||Effective Cutting Size:||1500*3000mm (1300*2500mm Optional )|
|Real Laser Power:||2000W ( Other Power Can Be Optional)||Laser Wavelength:||1064nm|
|Laser Type:||Fiber Laser||Power Consumption:||16KW|
|Focus System:||Automatic Following And Detective||Power Supply:||Three Phase 380V/50Hz|
|Processing Material:||Stainless Steel, Carbon Steel, Aluminum, Etc||Machine Size:||9545*2910*1750mm ( L*W*H)|
|Working Table:||Double Exchange Tables||Machine Structure:||Full Sealed Cabinet With Laser Protection|
cnc laser cutting machine sheet metal,
cnc laser cutting machine

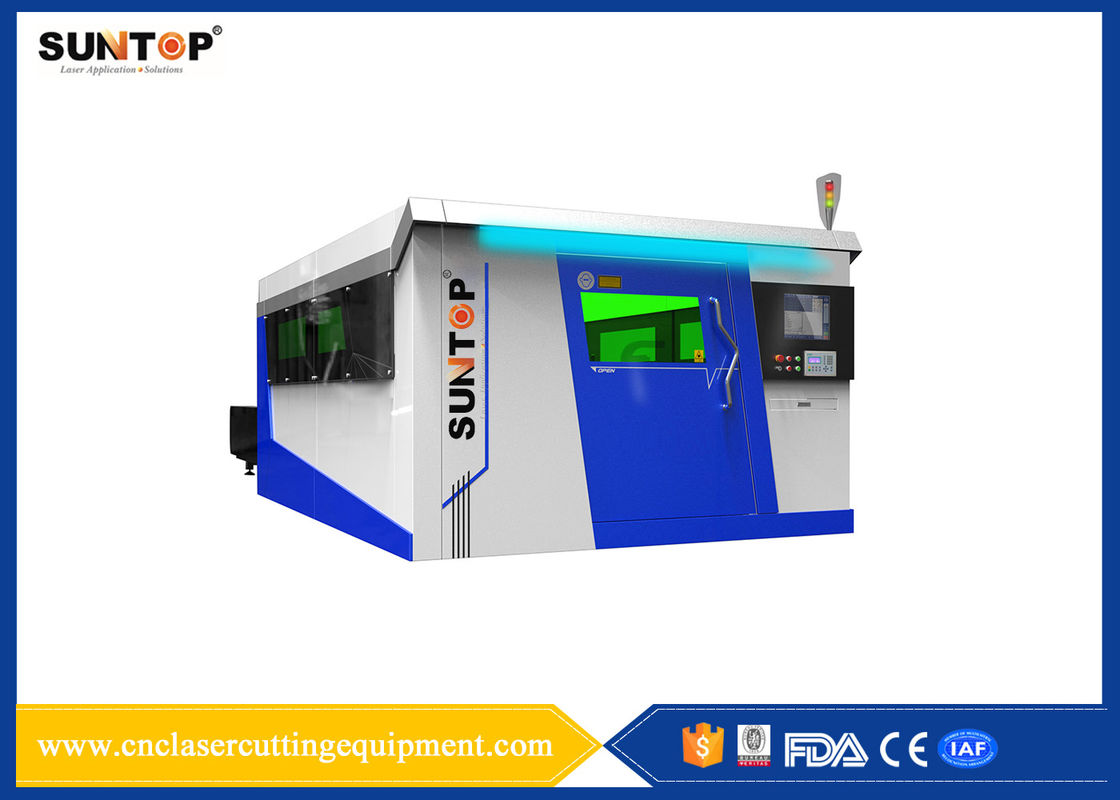

Steel Fiber Laser Cutting Machine with dual-exchange working tables and full enclosed structure
The advantage of our high power fiber laser cutting machine ( dual-exchange tables)
1.1. The cutting quality is good:
Because of the small laser spot, high energy density, fast cutting speed, laser cutting can therefore get better cutting quality.
(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm, the cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
(2) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.
1.2. Highly automation:
Adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.
1.3. High cutting efficiency:
Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting.
1.4. Non-contact cutting:
There is no contact for work piece and laser head, so there is no tool wear. No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.
1.5. Variety cutting material:
Compared with oxyacetylene cutting and plasma cutting, laser can cut many kinds of materials, including metal, nonmetal, metal and nonmetal based composite material, leather, wood, fiber, etc. But for different material, it shows different laser cutting adaptability due to its thermal physical properties and different laser absorption rate.
2.1. Excellent overall performance, changeable working tables, 7 seconds to finish
high speed changing, improve working efficiency of more than 48%.
2.2. The machine tool includes loading area and processing area, standard configuration
is changeable working tables, auto change the workpiece between processing area and
loading area by motor, convenient to upload and download. With the design of changeable
working table, could prepare the next uploading while processing, highly improved working
2.3. Equipped with exhaust device, have good exhausting effect and little pollution,small occupied
area, high system integration, convenient to operate and maintenance 24 hours continuous
2.4. The water chiller has good safety protection function, such as over temperature, lack phase,
pressure, waterbreak, undervoltage, overload, etc. With stable performance, satisfied the cooling
requirement of laser source.
Machine Aplication scope:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
Machine Applicable Industry
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
Machine main specifications:
|Laser source medium||Fiber laser|
|Cutting range(L*W)||3000mm × 1500mm||3000mm × 1500mm||3000mm × 1500mm|
|Z axle stroke||150 mm|
|Max cutting speed||40m/min||42m/min||45m/min|
|Max positioning speed||140m/min|
|Wok platform size/Max height of feeding material||4250x2500mm/more than 120mm|
|Cooling form||water cooling|
|Output power of laser source||1000W||1500W||2000W|
|Min. cutting gap||≤0.1mm||≤0.125mm||≤0.125mm|
|Positioning accuracy of X, Y and Z axles||±0.03 mm|
|Repeated positioning accuracy of X, Y and Z axles||±0.02 mm|
|Thickness of cutting material
(according to material)
|Drive model||Imported servo motor|
|Continuous working time||24 Hours|
|Machine weight||About 5950Kgs|
|Outer dimension||9028mm x 3741mm x 1910mm ( L*W*H)|
|Total protection level of power supply||IP54|
|Model of Laser Source||Fiber||CO2||Disc|
|Electro-optical Conversion Efficiency||30%||10%||15%|
|Life of Diode Pumped||>100,000||NA.||10,000|
|Soft Processing||more suitable||unsuitable||suitable|
|Replaced Parts||High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other.||Laser work requires gas
supplement, reflection lens replacement.
|Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000|
Competitive Advantage of Suntop Laser :
1, Our high power sheet metal fiber laser cutting machines the main optic parts are imported from Germany or USA
2, Our machine tools are processed by high temperature Aluminium casting and welded which almost no deformation after 3-5 years.
3, We main for exporting, we have our professional after sales service team.
4, We have our own core patent technology, so our machine with high quality cost performance.
5, We do after sale service for oversea market within 12 hours.
6, We provide the free future programe and software upgrade.
7, We can customized the machine as per customer's requirements, machine can achieve the automation.
The cutting samples photos as follows:
