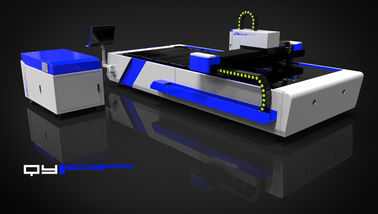

1000W Fiber Laser Cutting Machine For Sheet Metal Cutting Industry

1000W fiber laser cutting machine for sheet metal cutting industry​


1. Machine general introduction

QL-FC3015 1000W fiber laser cutter is achieved by powerful laser focused on object to cause instant melting and evaporation, with original fiber laser imported from Germany IPG. Automatic cutting is controlled by digitalized mechanic system, this machine has condensed the technologies of laser, digital, and precise mechanics,

The key parts are imported from Germany or USA, it’s the China’s price, European quality, use the gantry working table and the whole steel welding structure which make the machine very stable movement and almost no distortion. .

Laser cutting head can be adjusted through the Z axis; travelling area from 0-100mm, the laser cutting head has the automatic tracking functions which can agree with the metal wave surface.

2. Machine main features:

2.1. The machine uses a moving gantry structure, imported high-precision screw and linear guide, smooth transmission, high precision , the X, Y, Z axes are imported from Japan servo motor, high-precision, high- speed, high-torque, high inertia, stable performance and durable. Ensure the machine's high speed and acceleration.

2.2. Bed with the moving beam as a whole welded structure, roughing after annealing, and then the vibration aging treatment, can completely eliminate the stress of welding and machining, good rigidity, high accuracy can be maintained for a long time does not deform.

 2.3. Using many laser cutting control special function modules, powerful, human-machine interface, easy to operate based on the Windows operating system, fiber laser cutting machine CNC system integrated, independent research and development of personalized nesting software, CNC cutting machine to achieve “full-time cutting, efficient cutting and high - nesting rate cut " core technology is the fundamental guarantee of effective material savings, improve cutting efficiency .

2.4. Imported high - precision electronic control proportional valve, precise control of the cutting auxiliary gas pressure, in order to achieve the best cutting results, using the Japan Panasonic servo motor and drive, using the advanced Japan Panasonic A5 series servo motor and drive, it is automatic compensation the path of cutting and ensure the cutting precision.

2.5. Adopt fiber dedicated laser cutting head and automatic tracking system.

3. Application materials

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.


4. Cutting speed table (only for reference, the actual speed depend on the actual materials)


5. The machine’s main technical parameters


6. Machine’s main configurations



7. The laser cutting samples:
