Aluminium alloy cnc water Jet cutting machine 0-15meter/min 3.7L/min





               The main specifications of the 37KW Water Jet cutting system







CNC water-jet cutting machine is composed with cutting table, HP pump, CNC control system with cutting software, cutting head, HP water valve, and sand controlling system. Auto abrasive feeding system and water cooling system are needed. Also you can choose optional systems such as water softening system and auto sludge removal system according your requests.



We suggest the Max.cutting thickness 100mm, the rough cutting speed please refers to the “cutting speed data”.





1, Cutting table



1.1. Structure feature

--Casting beam and Y-axis base frame make it have excellent precision and stability.

--Machine table body and water tank which are sub aspect structure, less the pressure of sands and machined parts to moving parts.

--X-axis and Y-axis transmit to rolling nut ball screw mandrel.





1.2. Control system

We adopt the famous NAIKY controlling system and MITSUBISHI AC servo digit driving system and AC servo motors.





1.3. Machine chief technical parameter

Structure: Bridge

Size( X and Y): 3100*1600mm

X-axis: 3000mm

Y-axis: 1500mm

Z-axis: 200mm

Repeatability: 0.02mm

X.Y speed: 0-15meter/min

Control accuracy: ±0.01mm

Cutting accuracy: ±0.1mm



Power: 380VAC, 50HZ, 3 phase 4 wires system.





1.4. Transmission system

We adopt the HIWIN (Taiwan) lead rail and gear rack to ensure accuracy durable and quality.



1.4.1. Prevention system

--over travel auto spacing function and soft spacing function;

--Unique prevention design: new mazy protection and Z-axis totally enclosed professional design prevent sand and water-from eroding the guide screw and lead rail.



1.4.2. Lubrication system

We adopt the auto mass lubrication system to make oil reach every oil site on time and also make table steadier and easier.





1.5. Abrasive cutting system



1.5.1. The cutting efficiency of this machine integrative abrasive cutting head is one of the highest machines in the world.

--it has rectification function and lessens the time of assembling

--changing the wearing parts is very simple



1.5.2. The machine’s HP water switch

--air valve can open and closed the HP water instantaneously.

--with the help of CNC we can control HP water automatically.

--blockage pressure can be adjustable arbitrarily to realize the operation under the low pressure circumstances.



1.5.3. Sand feeding system

Dynamic sand feeding

Manual makes up the sand for the feeder (assisted with sand meter, auto feeder can realize automatically feeding)



1.5.4. DCAS-B sand valve

--Dynamic sand feeding

--Dynamic type comes over traditional type.

--Manual type makes the operation easier.

--With the help of CNC we can control abrasive automatically.



1.5.5. Sand hopper

--Side-handing sand hopper

--There is a window on the side face, it can remind workers when to feed sand

--It can provide the sand consumption every time after it’s filled up

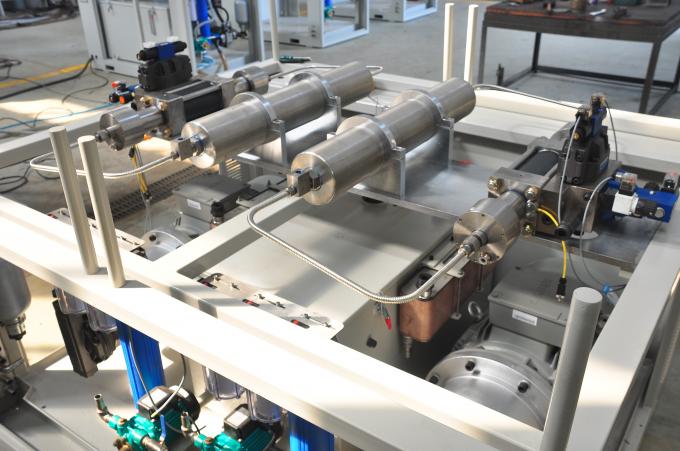

2. HP system



Main Features:

Control:PLC

Shifting:electro-hydraulic control

Cooling:cooler/oil heat exchanger

In let water filter accuracy :≤0.45µm

Oil-return filter accuracy :20µm

Working temp:0-60℃

Outlet:UNF 3/8"

Cooling in/out-let:NPT1"

Max orifice size:0.33mm



We have been cooperated with USA Hypertherm and German KMT for 8years.





2.1 HP system:YCWJ-3038(semi imported configuration)



max.pressure:380Mpa

max.flowrate:3.7L/min

electrical power:30KW/40HP

voltage:380VAC,50HZ,3PH(customized)

some key parts adopt imported parts,such as check valve body ,high pressure cylinder ,check valve repair kit ,on/off valve repair kit, high pressure seals are imported from USA Hypertherm/Accustream



2.2 HP system:YCWJ-3742S(fully imported configuration)



max.pressure:420Mpa

max.flowrate:3.7L/min

electrical power:37KW/50HP

voltage:380VAC,50HZ,3PH(customized)

intensifier assembly is fully imported from Accustream/Hypertherm







3. CNC controller



3.1.1. CNC configuration

--17” LCD liquid crystal display

--DNC on-line working function

--Functions of returning arbitrary point, bending and circular arc working auto deceleration.

--Functions of cutting figure imitation display.

--80GB memory hard disk

--MITSUBISHI AC servo driver and motor.

--1GB memory card

--Multilingual functions (Chinese, English etc…)

--Drive-by-wire and hand-hold controller (according to requests)



3.1.2. Software

NAIKY PCIMC-6A special software is special for this cutting machine.



The functions of PCIMC-6A are as follows:



--Change DXF document which is educed from AUTOCAD into numerical control process.

--Serial communications between PC and CNC.

--Open database can shore parameters, just click the material, parameter will be loaded automatically.

--Calculate length of line and time automatically

--Cutting track auto imitation function

--The functions of lessening speed on the corner remanding material bridging and lancing.





4. Auto abrasive feeding system



--It provides the functions of shorting and sanding sands for the machine, also improves the automation and lessens intensity of labor.

--Capacity: 170L

--High accuracy can remain workers when to feed sands.





5. Auto water cooling system

--Guarantee that hydraulic system can be used circularly.

--Save water





6. Machine parts details



No.	Name	Model	Specifications	Quantity
1-3	CNC water jet cutting machine	High pressure system: WJ-3742	Max. pressure: 420MPA	1
		Cutting table: WJ-L3015	Cutting size: 3000*1500mm
		CNC control system	Based on Window with NC studio
4	Abrasive feeding system	WJ-A	170L	1
5	Water cooling system	WJ-B		1
6	Main motors	//	SIEMENS
7	Spare parts	List 1 & list 2	Free with the machine	free



List 1- Special tools
Item	Main Descriptions	Quantity
1	60K intensifier Tool kit ( For H-P Seal)	1
2	Wrench Girth ( For H-P Cylinder)	1
3	Wrench, Spanner ( For end Cap)	1
4	Wrench, Spanner ( For HIGH PRESSURE SWITCH)	1
5	Spanner ( For water filter)	1
6	Blue Lubricant	1





List 2- spare parts free with the machine
No.	Name	Quantity(set/pcs)
1	Ruby	4
2	Nozzle	1
3	HP water switch kit	1
4	HP seal	1
5	LP seal	1
6	LP check valve repair kit	1
7	Filter element ( 5 micron)	1
8	Filter element( 1 micron)	1
9	Filter element(0.5 micron)	1
10	O ring and assembled ferrule	1
11	Accumulator seal	1
12	Accumulator valve pad	1
13	Connecter of pipe	2
14	Shield cap	2
15	Air valve repair kit	1





Machine Chief parts brand and manufacturer comments:









This Machine cutting speed data for reference (the exact cutting speed data depend on the actual real materials)



Conditions:0.25mm ruby,0.8mm nozzle



Material type	Thickness(mm)	Cutting speed(420MPA model)mm/min
Marble	20	480
	30	360
Granite	20	384
	30	240
Brick	10	960
	28	360
Glass	8	1800
	10	960
	18	600
Doubling glass	21	720
Sponge	20	8400
	50	3600
	80	2400
Carpet	3-4	3600
Stainless steel sheet	1	1440
	3	720
	6	360
	10	240
	16	120
	20	102
	30	48
	55	12
	65	6
Steel Sheet	3	1440
	5	1020
Aluminum Alloy sheet and magnesium alloy sheet	10	480
	20	180
	30	120
	70	48
	80	20
	100	15





The water jet cutting photos for reference

















We can customized different kinds of water jet cutting machines depend on customers actual requirements, welcome to contact us for more informations.
